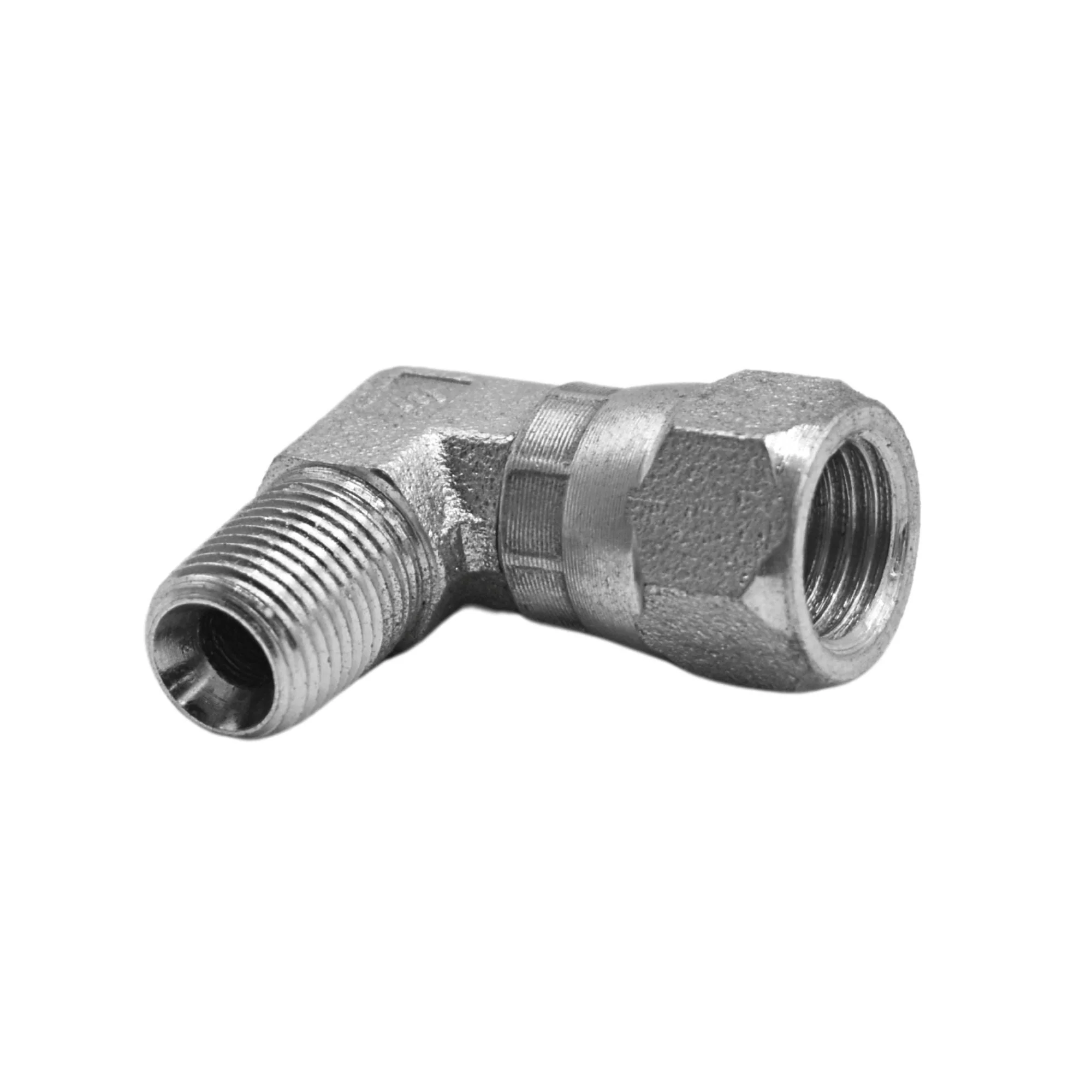

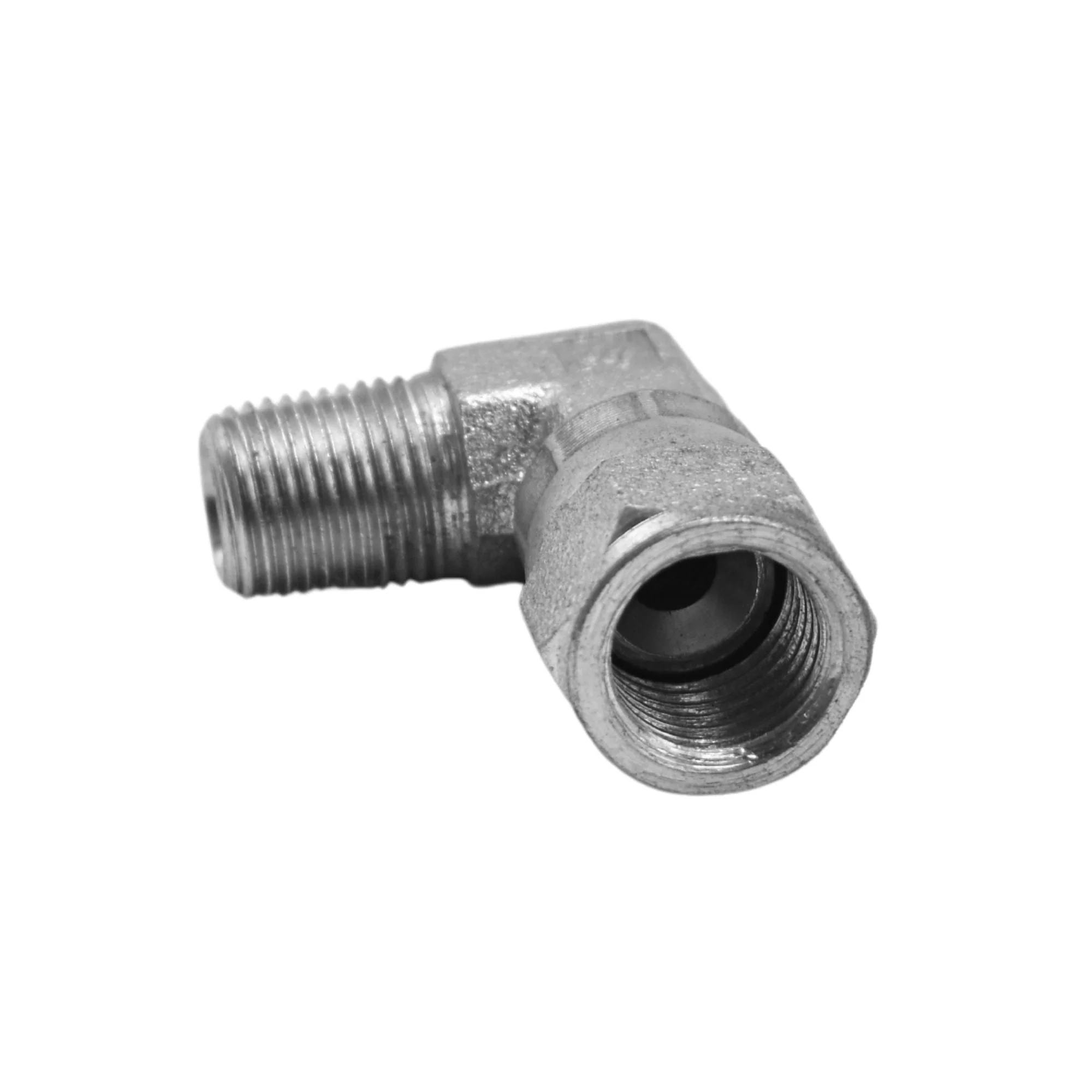

Hydraulics | 02MP-04FJS 90deg Elb Forg Adapter | 6501-02-04-FG—
$5.49
The Story
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL IN | 0.188 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.438 |
| OVERALL LENGTH L IN | 1.000 |
| OVERALL LENGTH L2 IN | 0.660 |
| CENTERLINE LENGTH M IN | 0.780 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.0625 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
