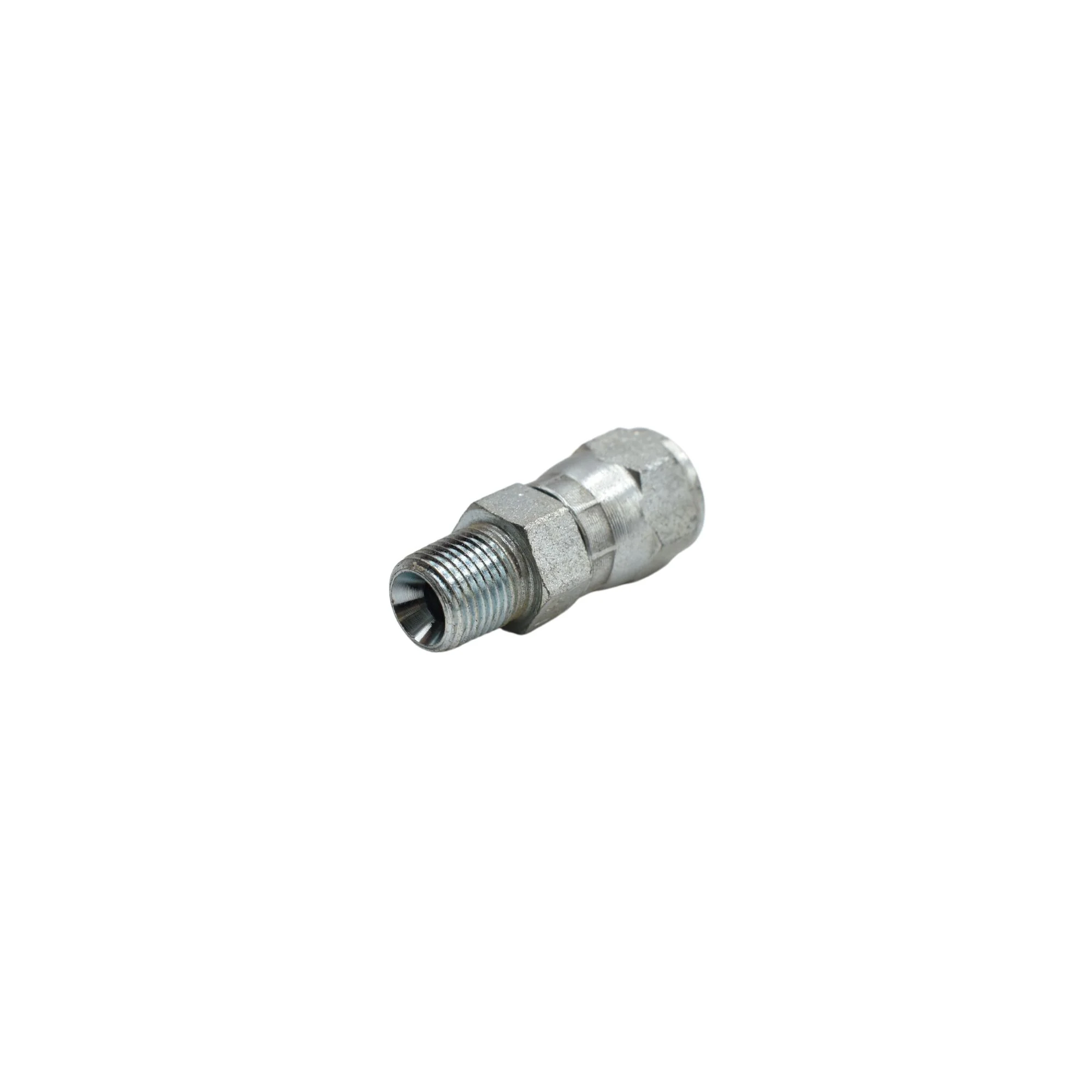

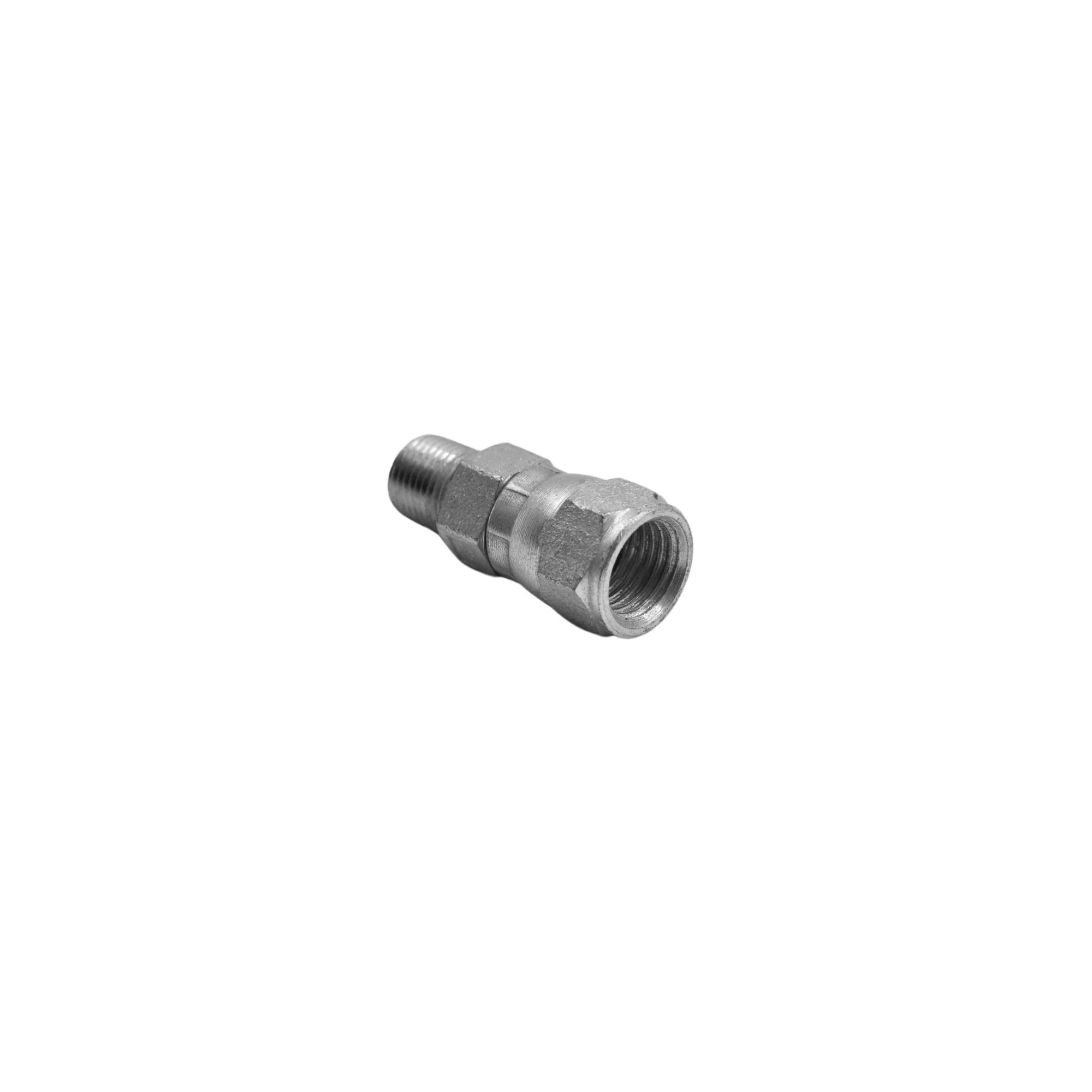

Hydraulics | 02MP-04FJS Straight | 6505-02-04—
$10.30
The Story
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/8-27 |
| THREAD B1 DRILL IN | 0.188 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.500 |
| C HEX 1 IN | 0.563 |
| OVERALL LENGTH L IN | 1.350 |
| OVERALL LENGTH L2 IN | 1.010 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT LBS | 0.05 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
