$11.65

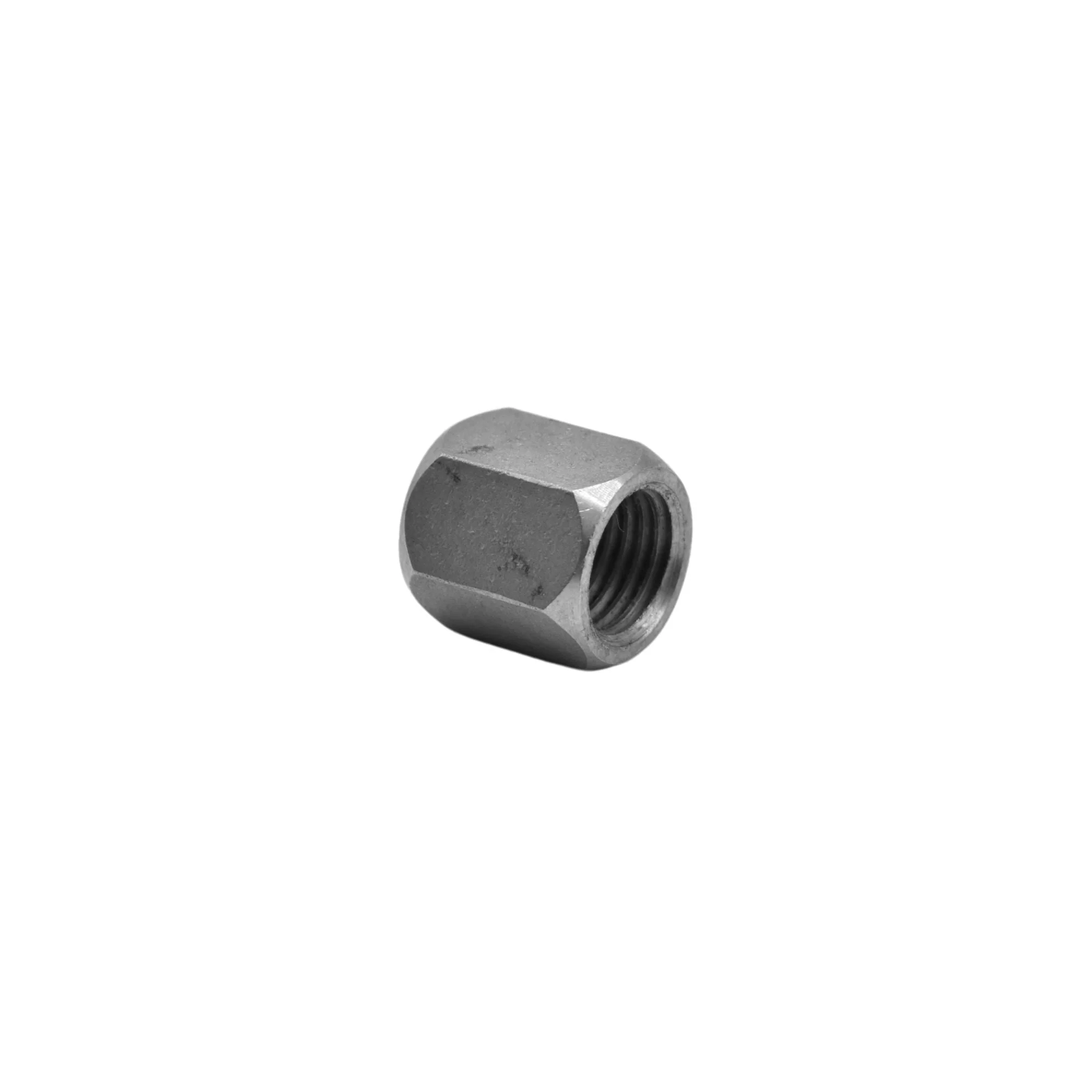

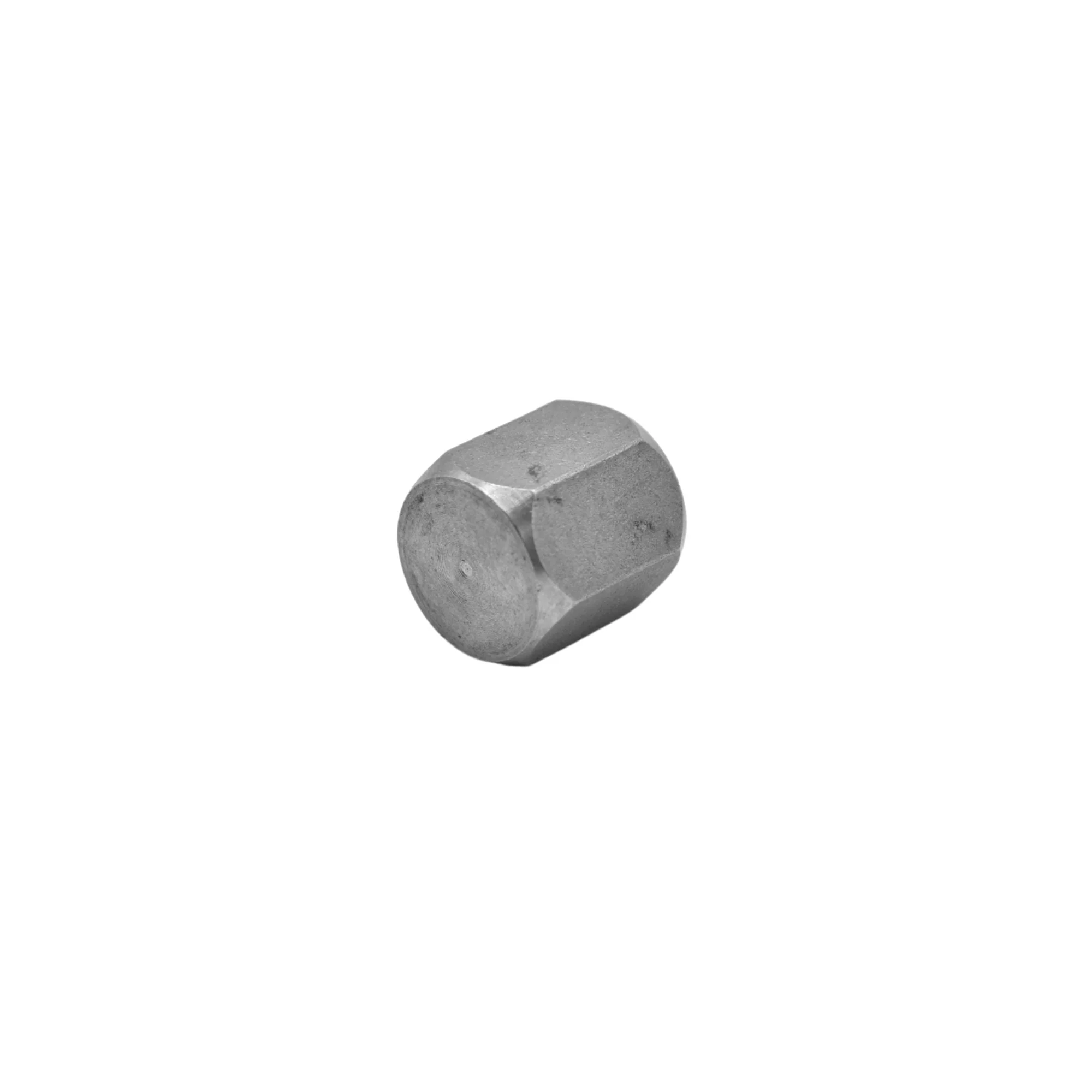

Hydraulics | 04 JIC Cap Nut SS | 0304-C-04-SS—
$11.65
The Story
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | TUBE OD 1/4 |
| THREAD B1 DRILL IN | 7/16-20 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.562 |
| OVERALL LENGTH L IN | 0.590 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.0341 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.186 |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| THREAD B1 TYPE | FEMALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | TUBE OD 1/4 |
| THREAD B1 DRILL IN | 7/16-20 |
| THREAD B1 SPECIFICATION | SAE J514 |
| C HEX 1 IN | 0.562 |
| OVERALL LENGTH L IN | 0.590 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.0341 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.186 |
