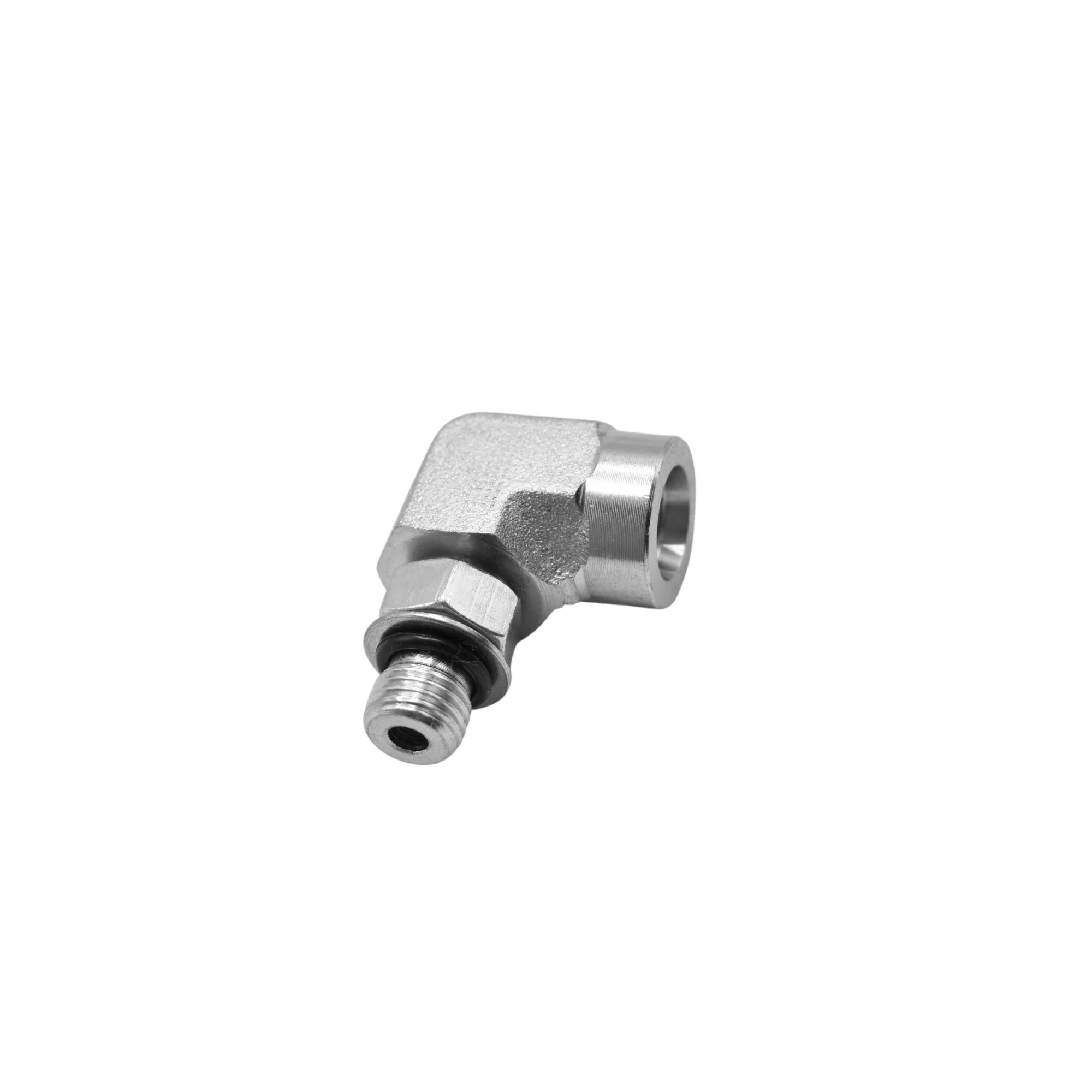

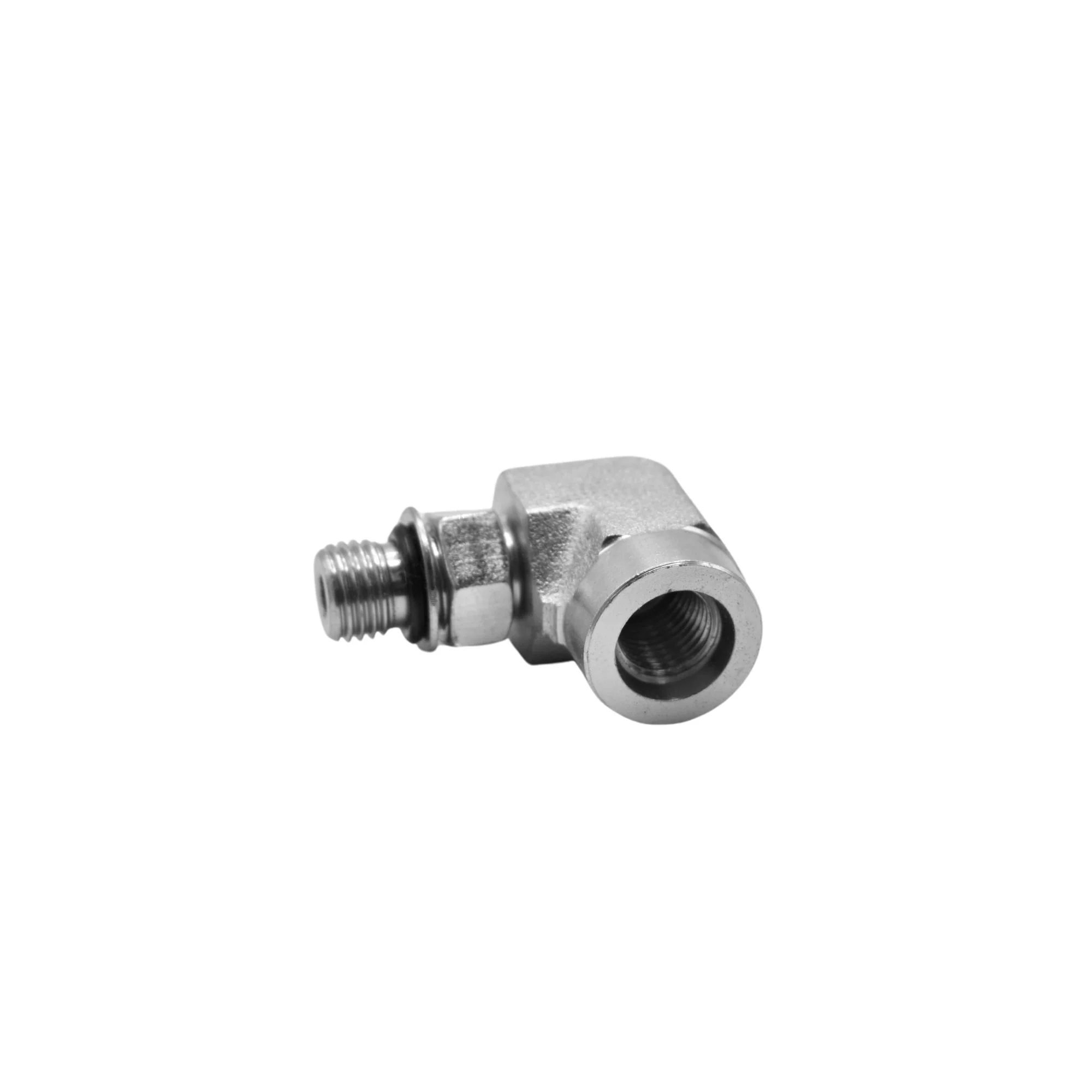

-65%Hydraulics | 04MAORB-04FORB 90deg Elb Forg | 6815-04-04-NWO-FG—
$8.48
$2.97The Story
04MAORB-04FO
| THREAD B1 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE O-RING BOSS |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.563 |
| OVERALL LENGTH L IN | 0.630 |
| CENTERLINE LENGTH M IN | 1.230 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.1445 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
