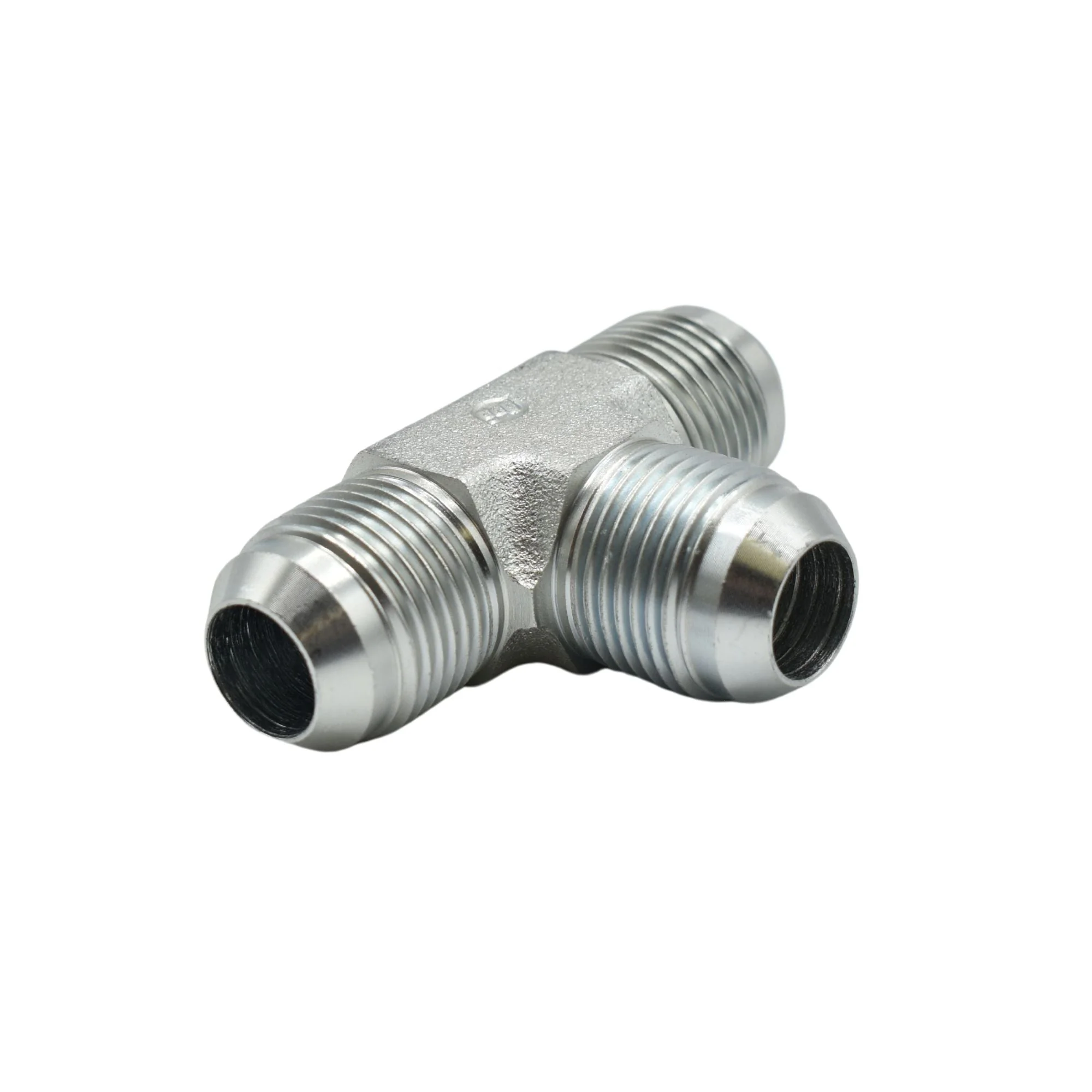

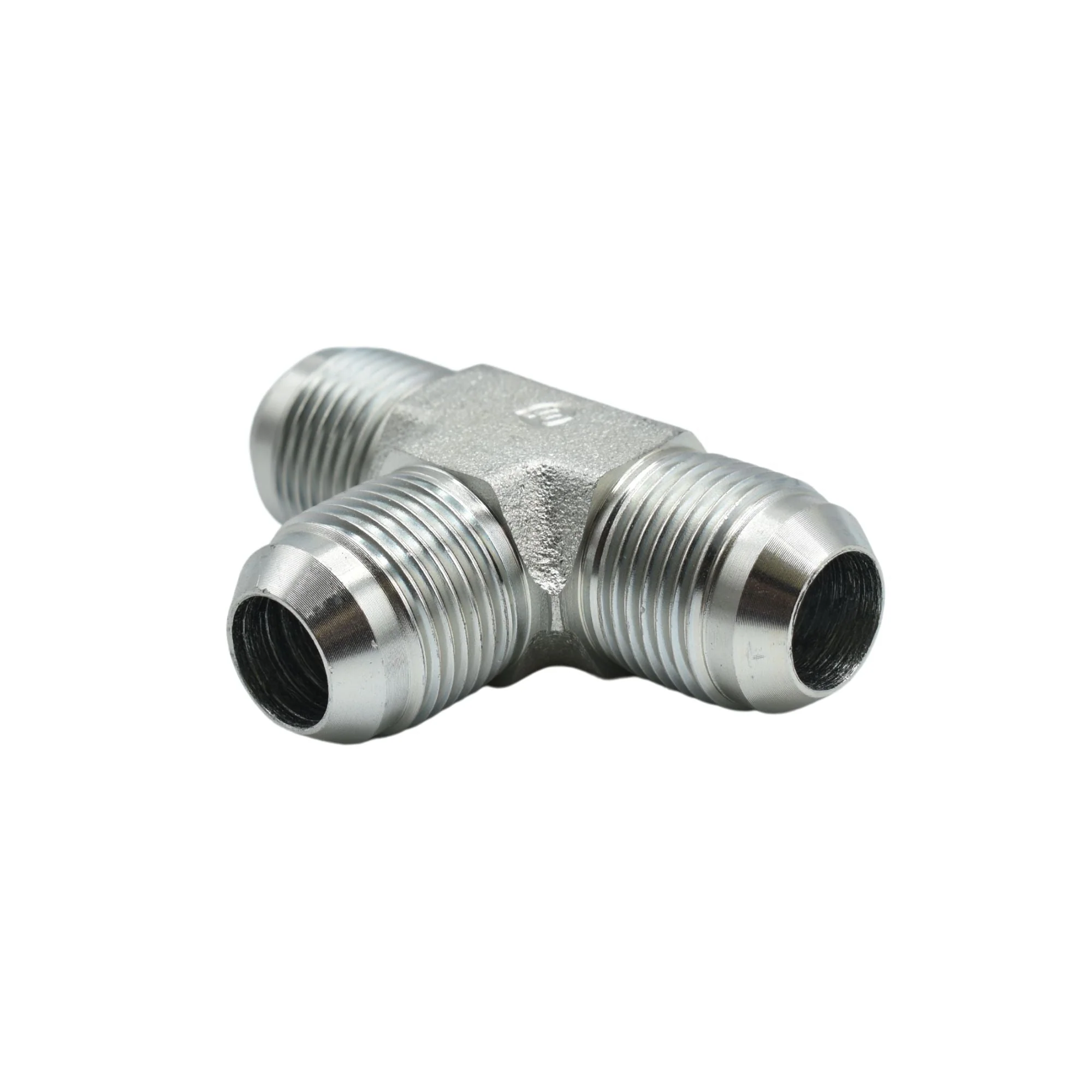

-65%Hydraulics | 04MJ-04MJ-04MJ Tee Forg Adapter | 2603-04-04-04-FG—
$3.64
$1.27The Story
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/16-20 |
| THREAD 3 DRILL IN | 0.172 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.438 |
| OVERALL LENGTH L IN | 1.780 |
| OVERALL LENGTH L2 IN | 0.890 |
| CENTERLINE LENGTH M IN | 0.890 |
| CENTERLINE LENGTH M2 IN | 0.890 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.07 |
| MAXIMUM DYNAMIC PRESSURE PSI | 7,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 0.865 |
