$11.43

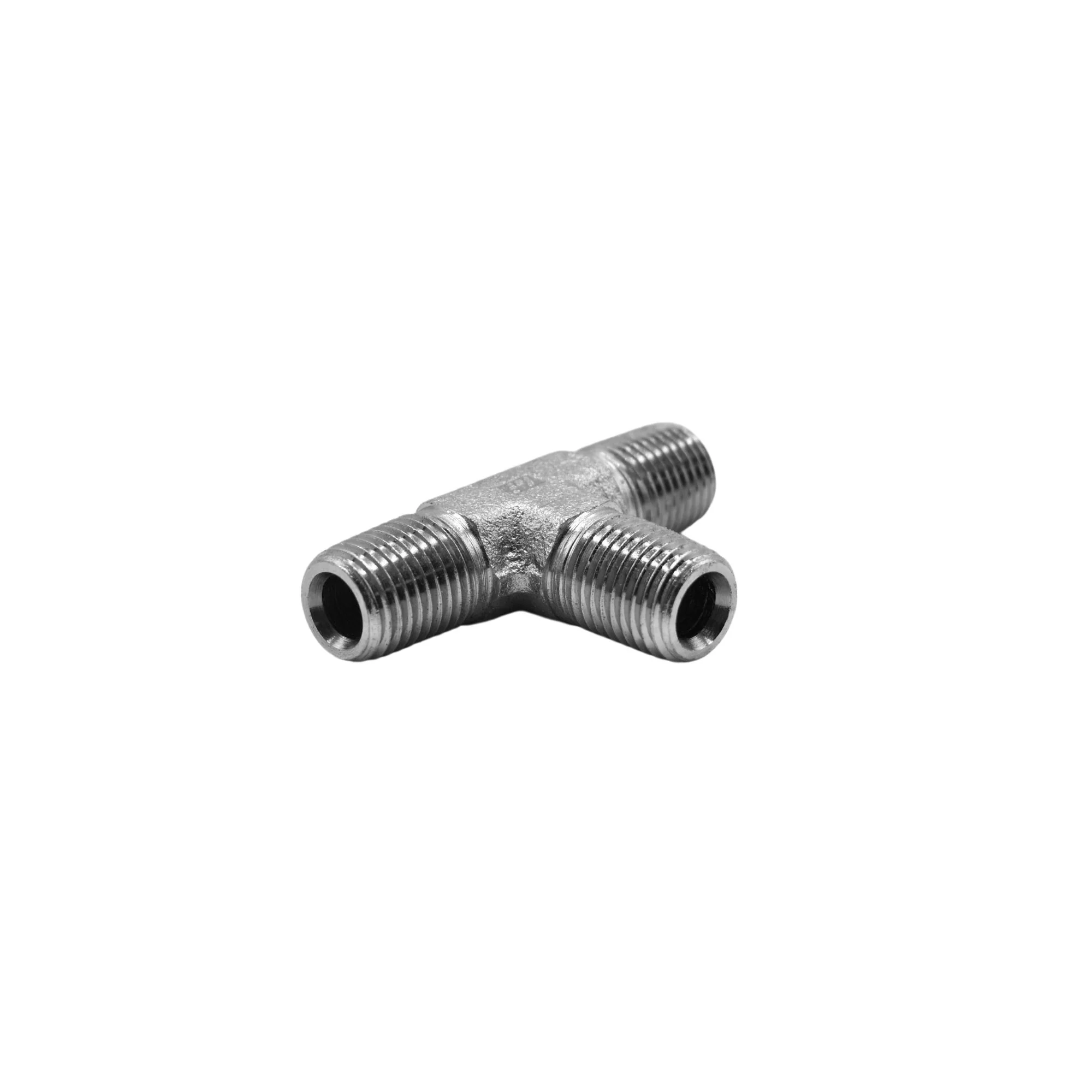

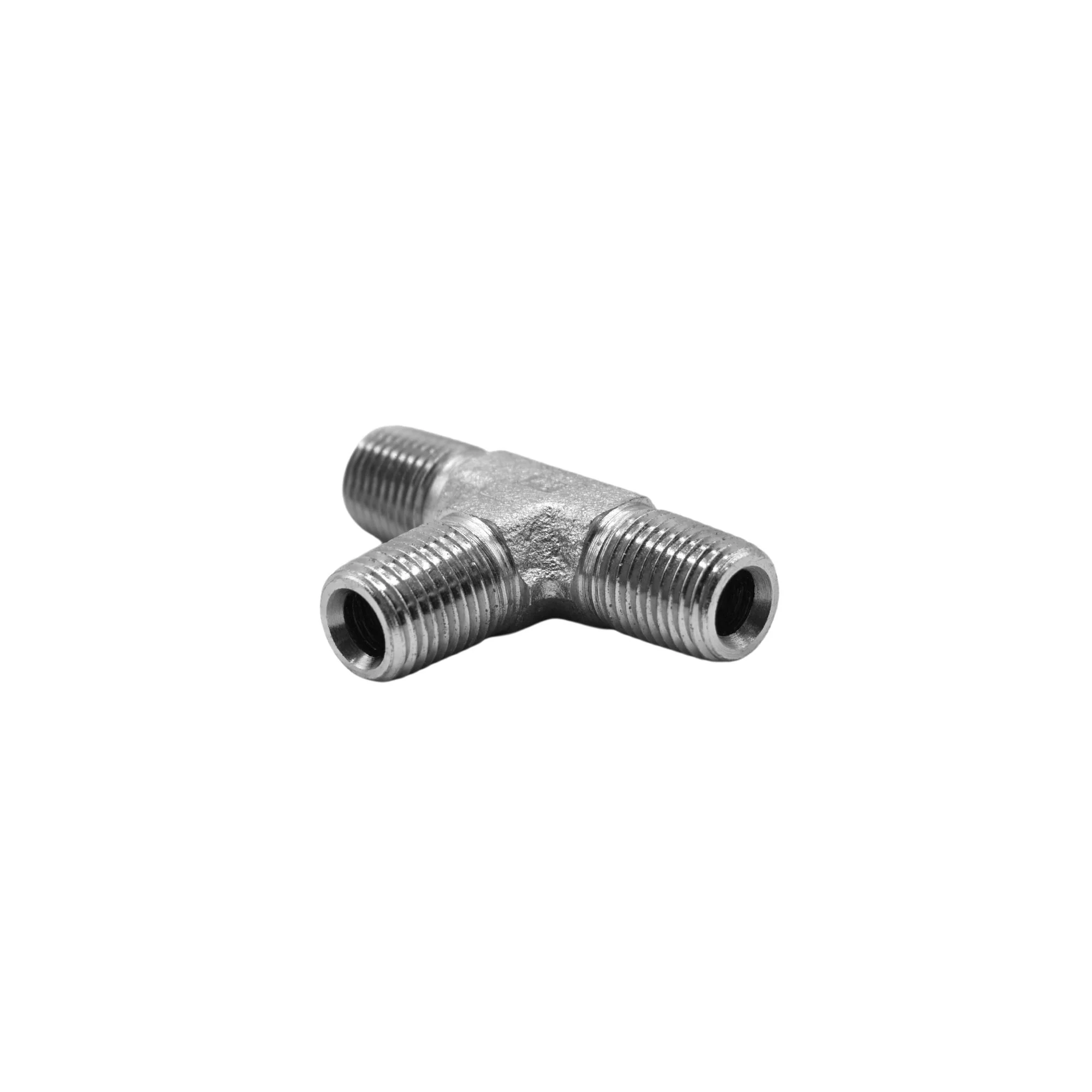

Hydraulics | 04MP-04MP-04MP Tee Forg | 5600-04-04-04-FG—
$11.43
The Story
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.281 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1/4-18 |
| THREAD 3 DRILL IN | 0.281 |
| THREAD 3 SPECIFICATIONN | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 1.090 |
| CENTERLINE LENGTH M IN | 1.090 |
| CENTERLINE LENGTH M2 IN | 1.090 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1375 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.68 |
