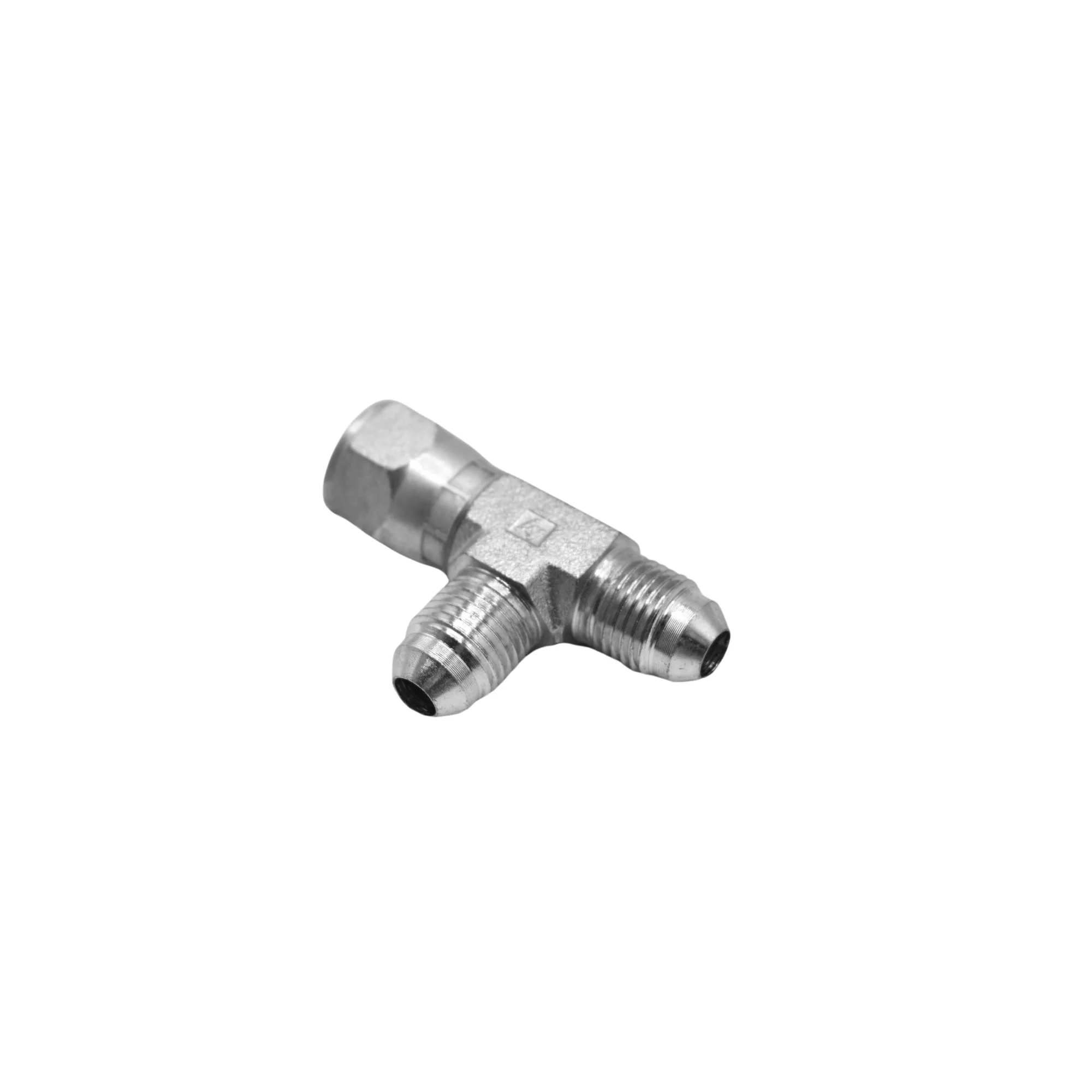

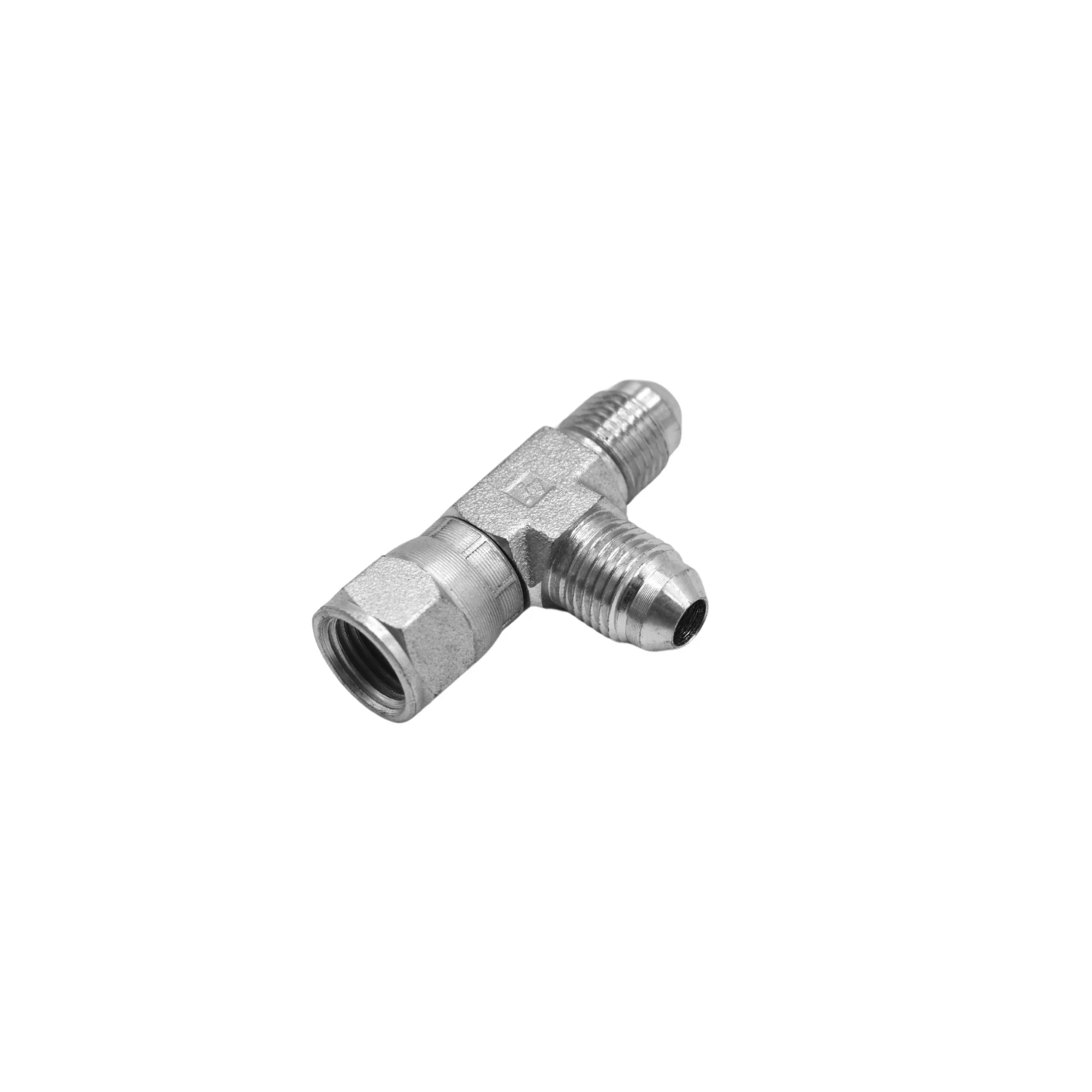

Hydraulics | 05MJ-05FJS-05MJ Tee Forg | 6602-05-05-05-FG—
$11.66
The Story
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1/2-20 |
| THREAD 3 DRILL IN | 0.234 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.625 |
| OVERALL LENGTH L IN | 0.950 |
| CENTERLINE LENGTH M IN | 0.950 |
| CENTERLINE LENGTH M2 IN | 1.060 |
| CENTERLINE LENGTH M3 IN | 0.680 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1187 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
