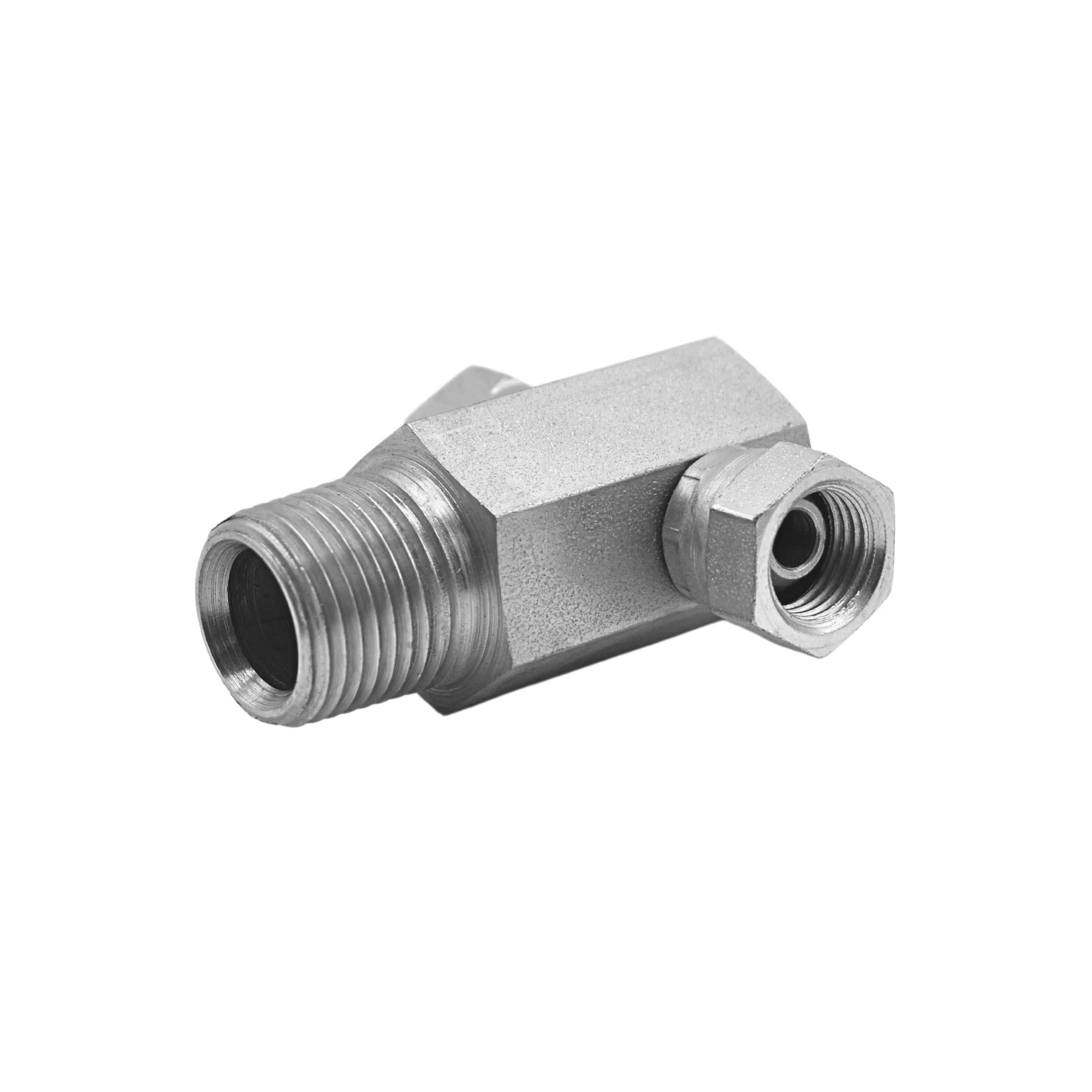

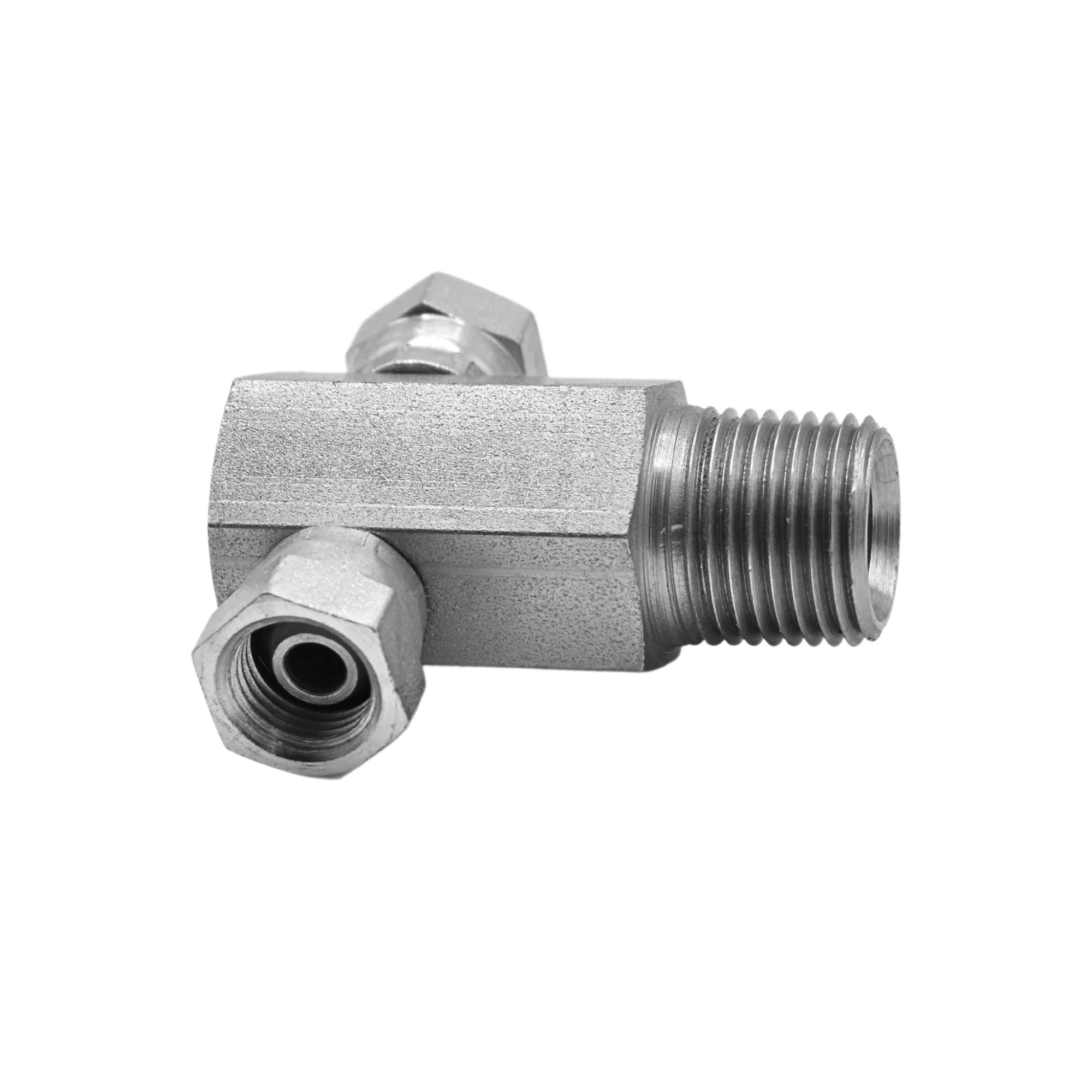

-65%Hydraulics | 08MP-04FPS-04FPS Tee Adapter | 1601-08-04-04-FG—
$21.58
$7.55The Story
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.210 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPSM SWIVEL |
| THREAD 3 SIZE | 1/4-18 |
| THREAD 3 DRILL IN | 0.210 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.688 |
| C HEX 1 IN | 0.875 |
| C HEX 2 IN | 0.875 |
| OVERALL LENGTH L IN | 2.066 |
| OVERALL LENGTH L2 IN | 1.470 |
| CENTERLINE LENGTH M2 IN | 1.033 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.3625 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.210 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPSM SWIVEL |
| THREAD 3 SIZE | 1/4-18 |
| THREAD 3 DRILL IN | 0.210 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.688 |
| C HEX 1 IN | 0.875 |
| C HEX 2 IN | 0.875 |
| OVERALL LENGTH L IN | 2.066 |
| OVERALL LENGTH L2 IN | 1.470 |
| CENTERLINE LENGTH M2 IN | 1.033 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.3625 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
