$7.51

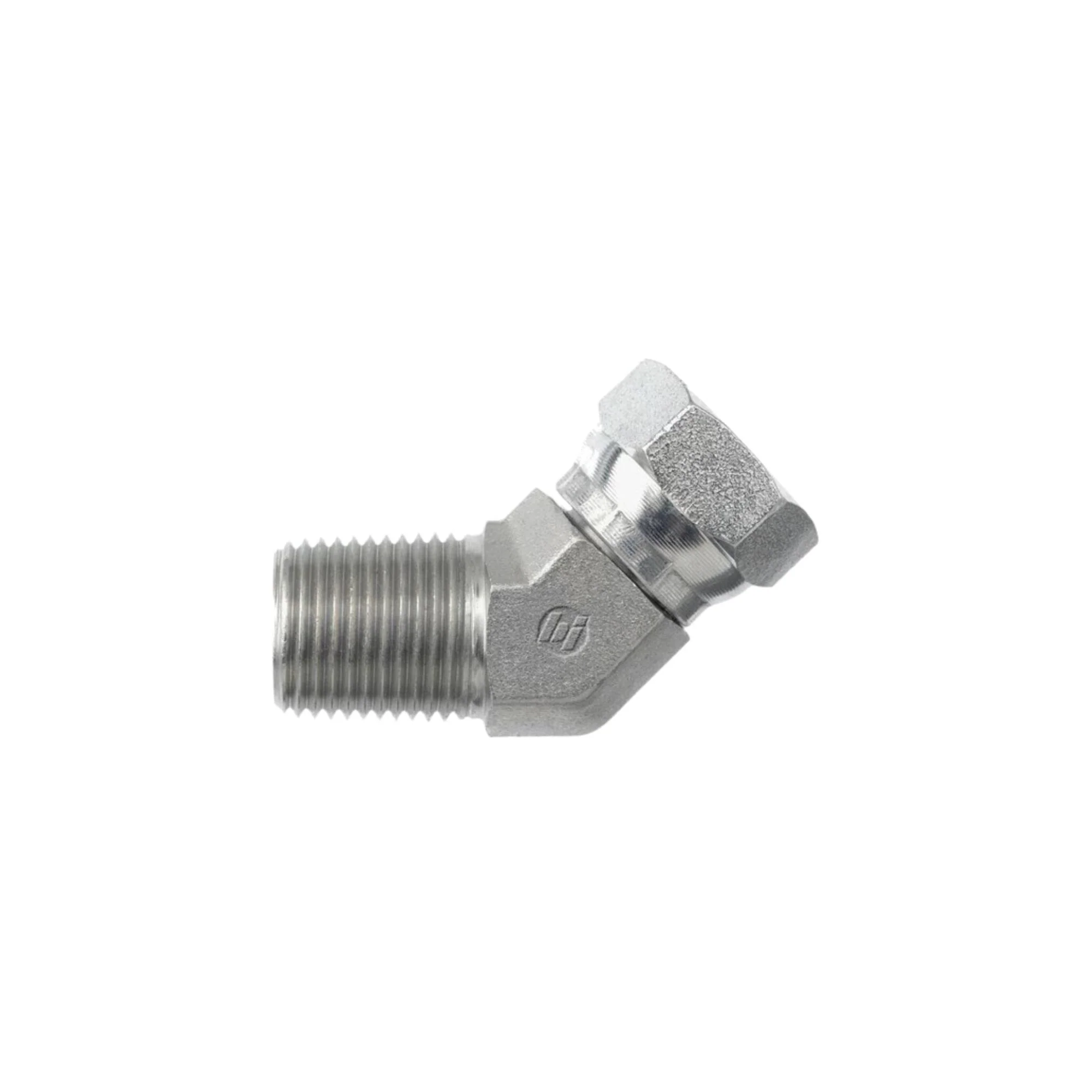

Hydraulics | 08MP-06FPS 45deg Elb Forg | 1503-08-06-FG—
$7.51
The Story
| THREAD B1 TYPE | MALE NPTF |
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | FEMALE NPSM SWIVEL |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.340 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 0.875 |
| OVERALL LENGTH L IN | 1.170 |
| CENTERLINE LENGTH M IN | 1.020 |
| CENTERLINE LENGTH M2 IN | 0.810 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.225 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.793 |
