$158.26

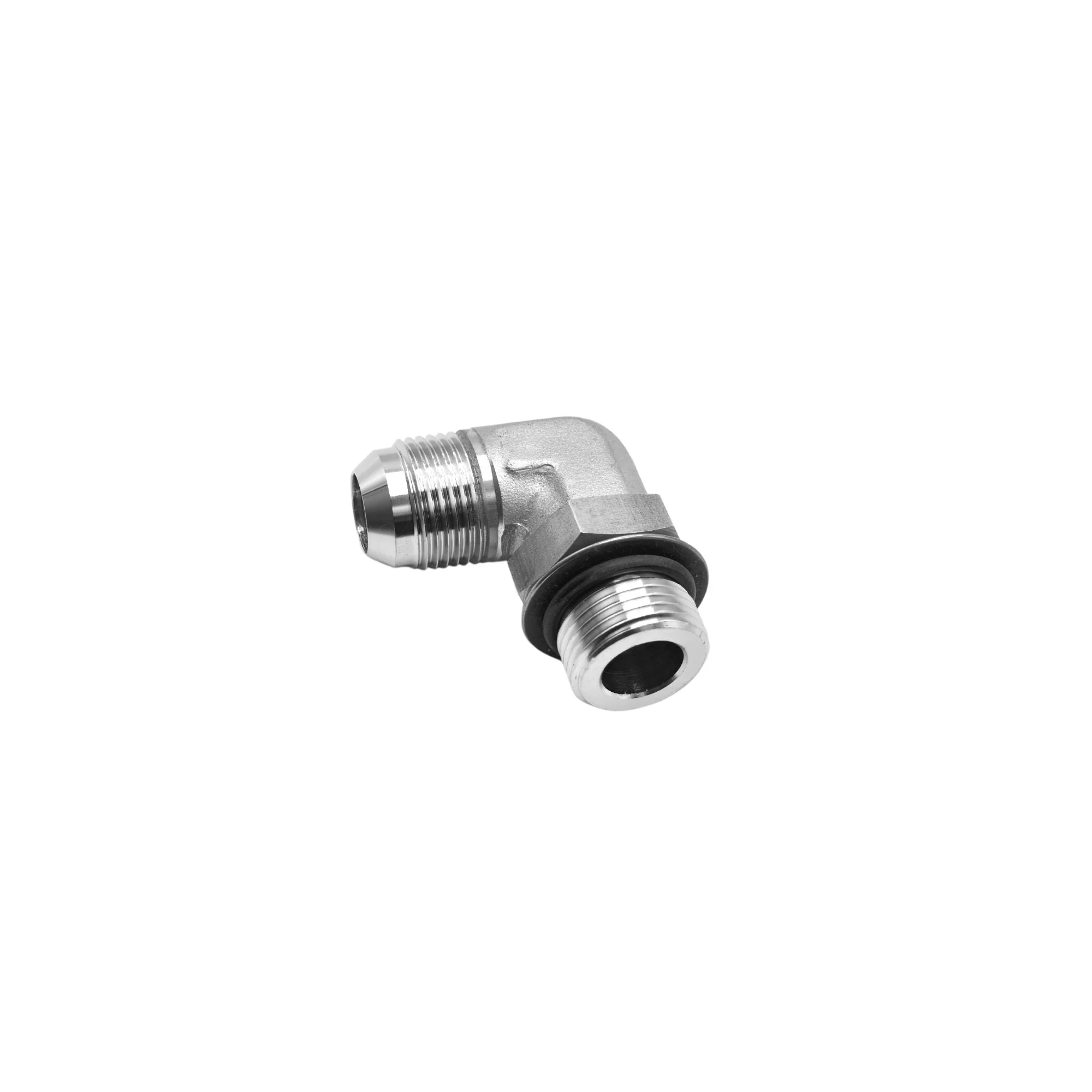

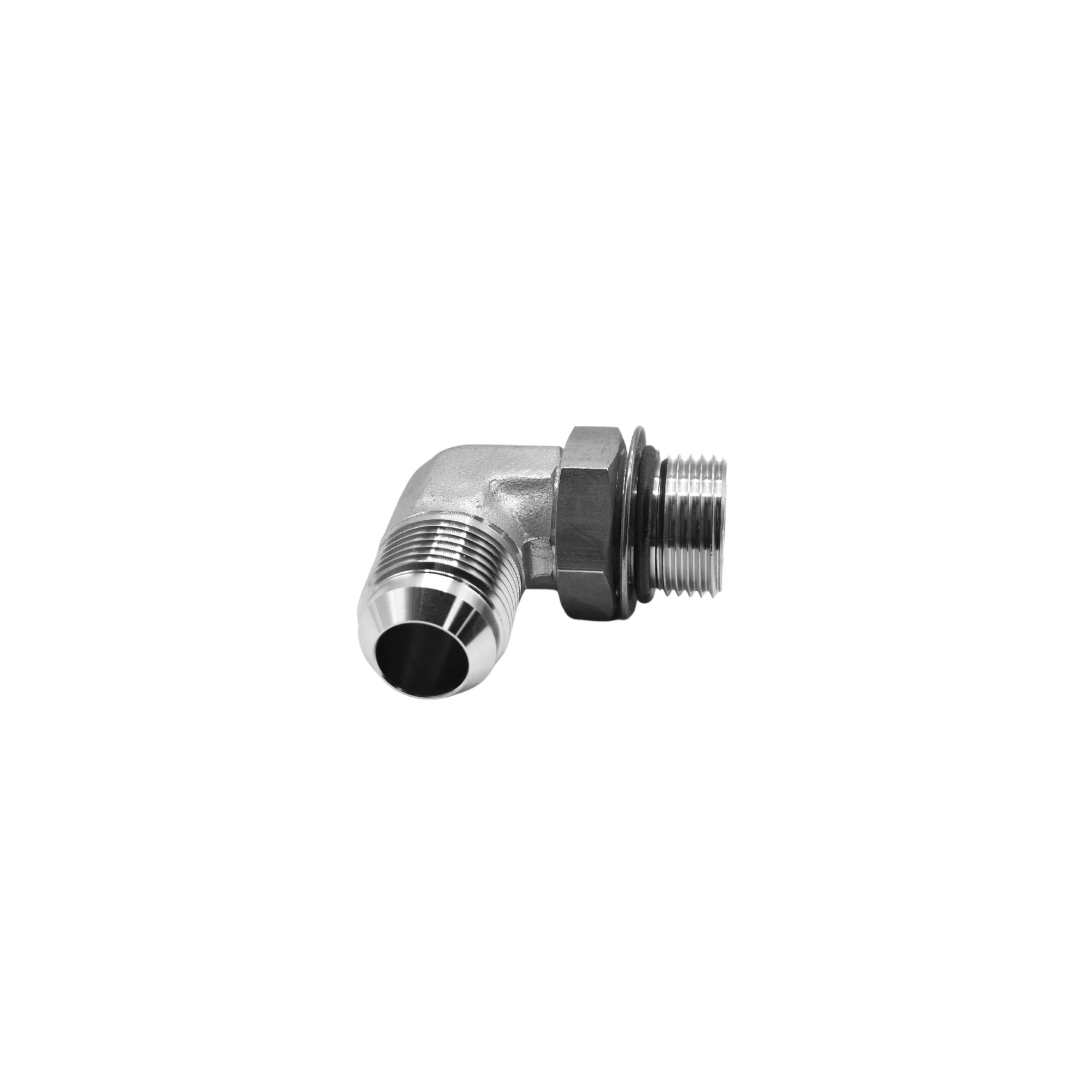

Hydraulics | 12MJ-12MAORB 90deg Elb Stnls | 6801-12-12-NWO-SS—
$158.26
The Story
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 1.940 |
| CENTERLINE LENGTH M IN | 1.660 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.6288 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 7.058 |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE SAE ADJUSTABLE ORING BOSS |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.250 |
| OVERALL LENGTH L IN | 1.940 |
| CENTERLINE LENGTH M IN | 1.660 |
| SHAPE | 90 DEGREE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.6288 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 7.058 |
