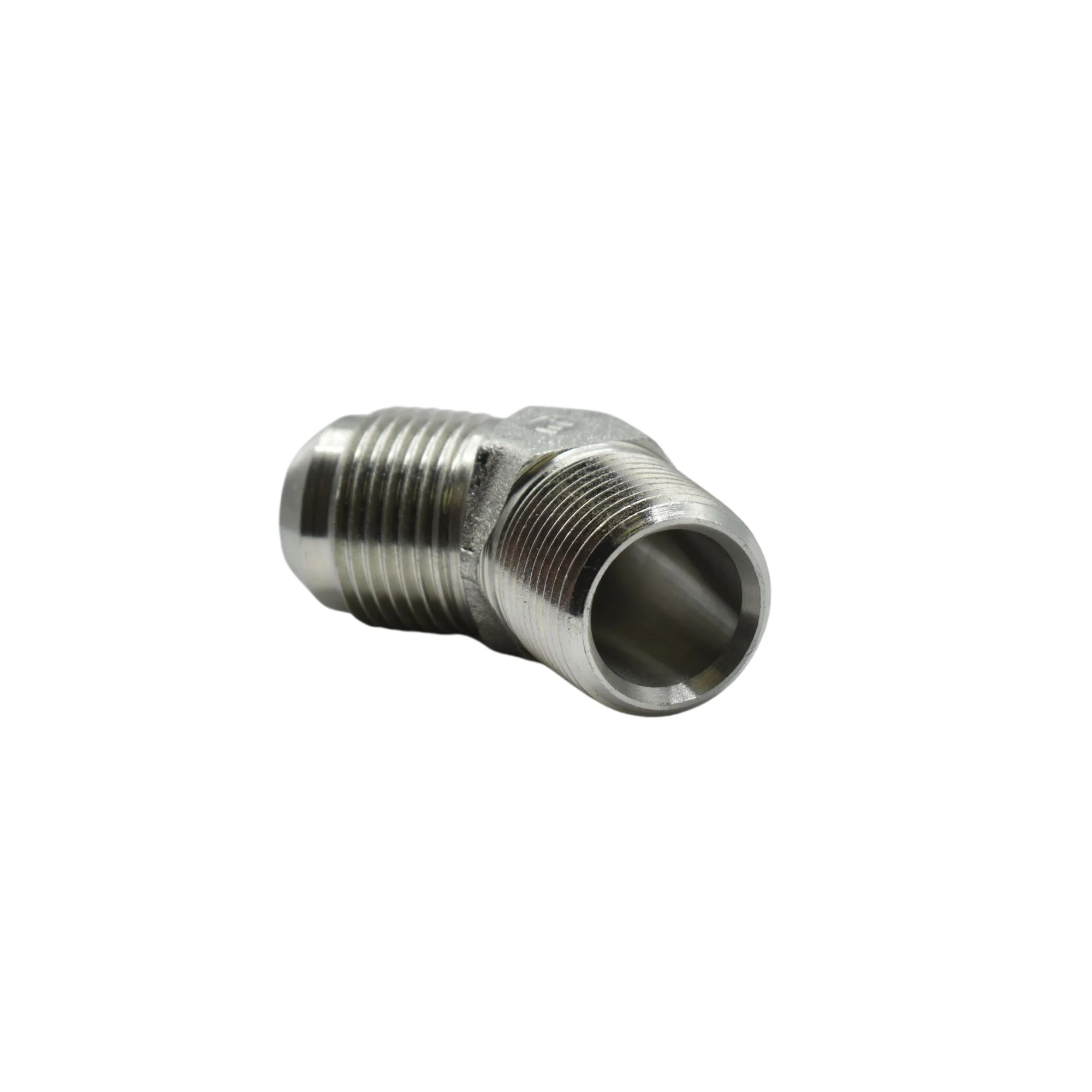

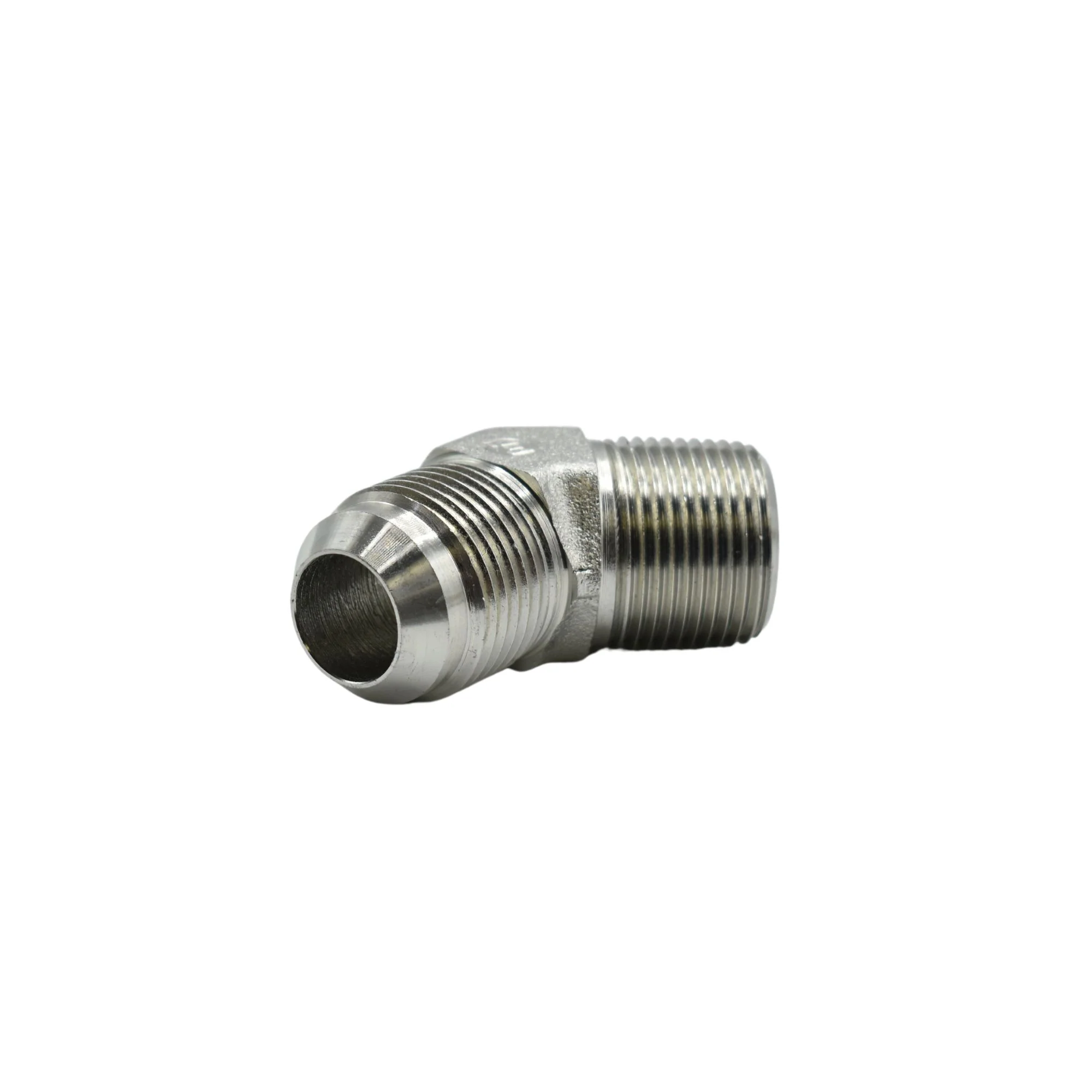

Hydraulics | 12MJ-12MP 45deg Elb Forg | 2503-12-12-FG—
$12.74
The Story
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.719 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.062 |
| OVERALL LENGTH L IN | 1.200 |
| CENTERLINE LENGTH M IN | 1.280 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.318 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 4.559 |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.719 |
| THREAD B2 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.062 |
| OVERALL LENGTH L IN | 1.200 |
| CENTERLINE LENGTH M IN | 1.280 |
| SHAPE | 45 DEGREE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.318 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 4.559 |
