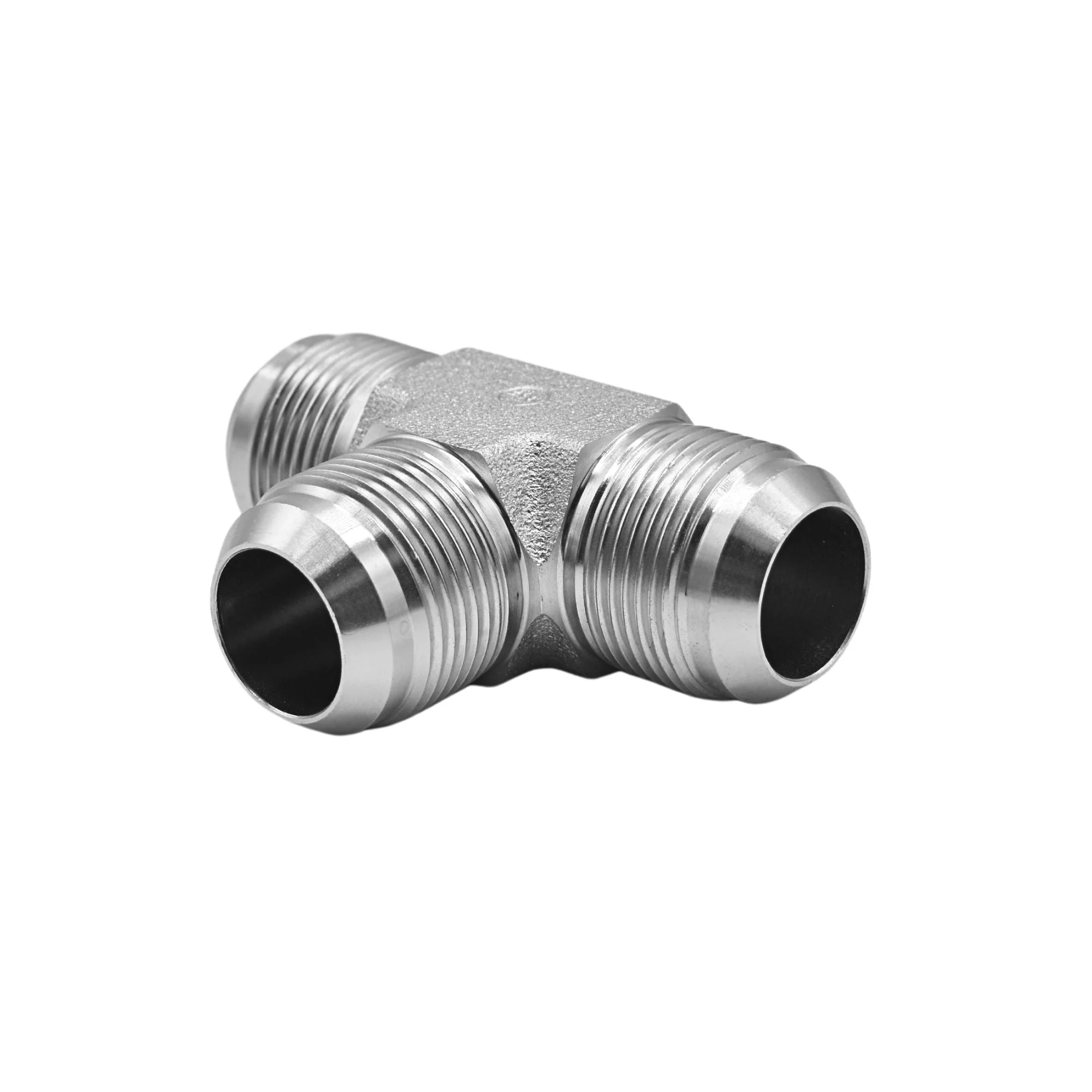

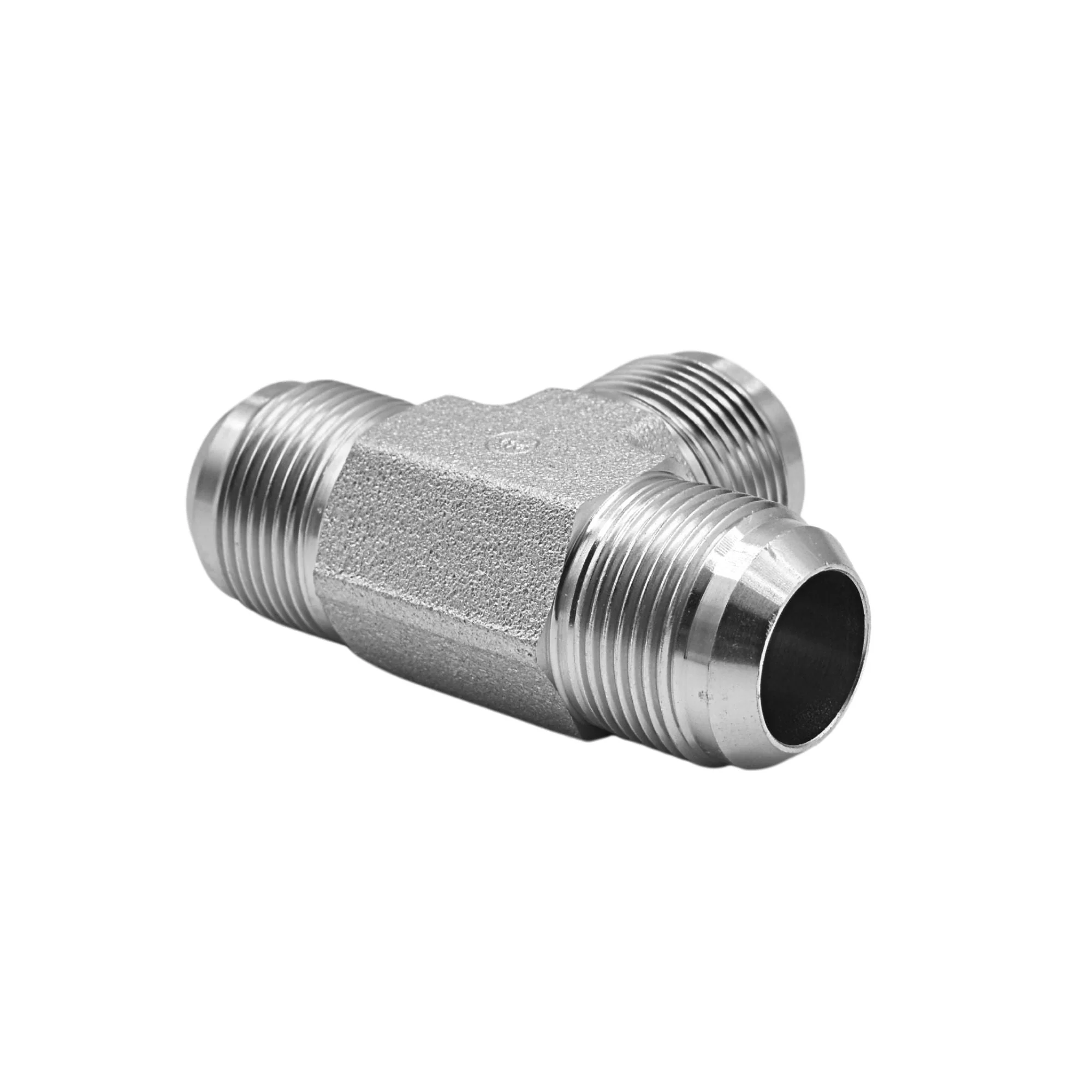

Hydraulics | 16MJ-16MJ-16MJ Tee Forg Adapter | 2603-16-16-16-FG—
$26.89
The Story
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/16-12 |
| THREAD 3 DRILL IN | 0.844 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.312 |
| OVERALL LENGTH L IN | 3.620 |
| OVERALL LENGTH L2 IN | 1.810 |
| CENTERLINE LENGTH M IN | 1.810 |
| CENTERLINE LENGTH M2 IN | 1.810 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.942 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 11.712 |
